2) Adjustment of first stage and trigger weight

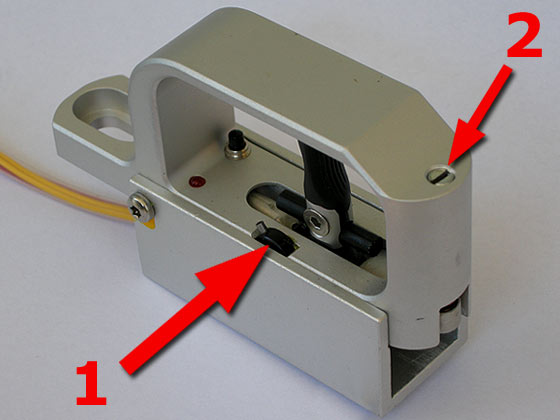

With the first stage switch (1) you can select 4 exactly defined first stages!
Individually according to your preferences!
Switching from stage to stage will not affect the catch overlap (second stage)!
The trigger weight i.e. pull weight can be individually adjusted by the trigger weight screw using a screwdriver (2).
Twisting clockwise:
the trigger weight increases (+).
Twisting counter clockwise:
the trigger weight decreases (-)
The action point of electronic trigger model 313/VW-V becomes preadjusted by Winzeler Crossbow!
Caution:
Individual adjustment can only be done by Winzeler Crossbow itself or
by an expert authorized by Winzeler Crossbow!
