The trigger blade can be adapted doubly:
- It can be shifted axially (forward and backward) to the line of fire!
- It can be shifted laterally to the line of fire in a limited range!

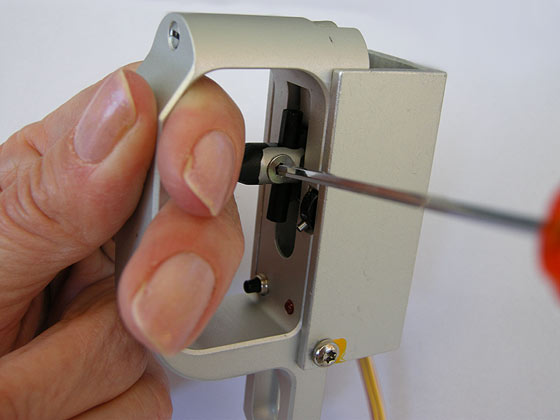

Untighten its clamping screw before shifting the trigger blade axially to the line of fire.
Caution:
Handle the trigger blade and its clamping screw carefully!
Hold the trigger blade always between your fingers as shown above!
